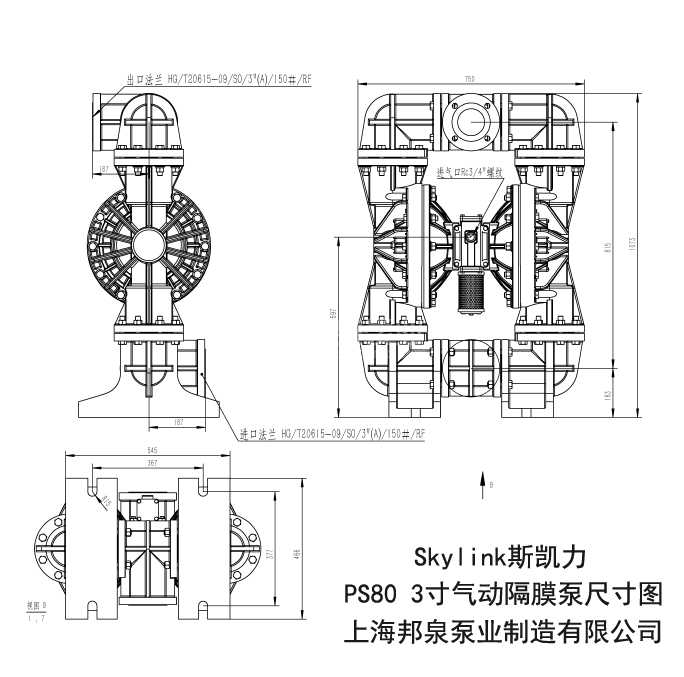

口徑:3"法蘭
HG/T20615-09 c1150
進氣接口:Rc3/4
泵殼材質:PP
隔膜材質:特氟龍
閥球:特氟龍
最大流量:988L/min(水)
最大壓力:6.9Bar
常見型號有：
PS80,PP-AT-T/S-PP-TT-0F
PS80,PP-AT-SP-PP-SP-0F
PS80,PP-AT-SP-PP-TT-0F
PS80,KY-AT-T/S-KY-TT-0F
PS80,KY-AT-SP-KY-SP-0F
常用流體備件包和空氣備件包
|
PS80 Fluid Space Part Package 流體備件包 |
|||
|
Part Package備件包 |
Part Number零件編號 |
Description描述 |
Quantity數量 |
|
3"Neoprene fluid spare part package 3寸氯丁橡膠流體備件包 |
0080.0152 |
3" Neoprene Valve Ball 3寸氯丁橡膠閥球 |
4 |
|
3" Neoprene Diaphragm 3寸氯丁橡膠膜片 |
2 |
||
|
3" Neoprene Valve Seat 3寸氯丁橡膠球座 |
4 |
||
|
3"Teflon/Santoprene fluid spare part package 3寸特氟龍/三道橡膠流體備件包 3"Teflon/Neoprene fluid spare part package 3寸特氟龍/氯丁橡膠流體備件包 |
0080.0184 0080.0124 |
3" PTFE Valve Ball 3寸特氟龍閥球 |
4 |
|
3" PTFE Diaphragm 3寸特氟龍膜片 |
2 |
||
|
3" Santoprene Diaphragm 3寸三道橡膠膜片 |
2 |
||
|
3" PTFE Valve Seat 3寸特氟龍球座 |
4 |
||
|
3" PTFE Valve Ball 3寸特氟龍閥球 |
4 |
||
|
3" PTFE Diaphragm 3寸特氟龍膜片 |
2 |
||
|
3" Neoprene Diaphragm 3寸氯丁橡膠膜片 |
2 |
||
|
3" PTFE Valve Seat 3寸特氟龍球座 |
4 |
||
|
3"Santoprene fluid spare part package 3寸三道橡膠流體備件包 |
0080.0158 |
3" Santoprene Valve Ball 3寸三道橡膠閥球 |
4 |
|
3" Santoprene Diaphragm 3寸三道橡膠膜片 |
2 |
||
|
3" Santoprene Valve Seat 3寸三道橡膠球座 |
4 |
||
|
PS80 Air Spare Part Package 空氣備件包 |
|||
|
3"Air spare part package 3寸空氣備件包 |
1080.0003 |
External "O" ring of 1.5-3"main valve 1.5-3寸主氣閥外層O型圈 "O" ring of 3"main shaft 3寸中間軸O型圈 |
6 2 |
|
"O" ring of 1.5"-3"pilot shaft 1.5-3寸導向閥閥套O型圈 |
4 |
||
|
Piston 1.5-3寸活塞組件 |
1 |
||
|
Spool Assembly 1.5-3寸主氣閥滑閥芯閥套 |
1 |
||
|
Gsaket.cap 1.5-3寸導向閥密封墊片 |
1 |
||
|
Main Gasket.cap 1.5-3寸主氣閥密封墊片 |
1 |
||
